  • Miniature circuit breaker YEPNLE-3~32

    Miniature circuit breaker YEPNLE-3~32

    model:Miniature circuit breaker YEPNLE-3~32rated current:6、10、16、20、25、32poles:1PRated voltage:220v Types of instant-aneousovercurrent trip units: C Standard:GB16917.1  IEC1009.1

    Learn more
  • Miniature circuit breaker YEPN-3~32

    Miniature circuit breaker YEPN-3~32

    Rated working voltage:220V poles:1P,1P+N Rated current:6,10,16,20,25, 32 Rated short-circuit breaking capacity：4500A

    Learn more
  • Miniature circuit breaker YENC-63~125

    Miniature circuit breaker YENC-63~125

    model:Miniature circuit breaker YENC-63~125Rated operating voltage:230/400poles:1p/2p,3p,4prated current:63,80,100,125Rated short-circuit breaking capacity:10KA

    Learn more

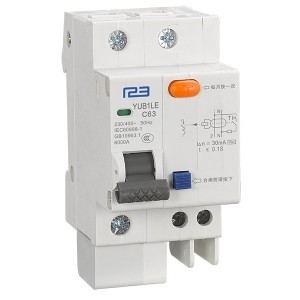

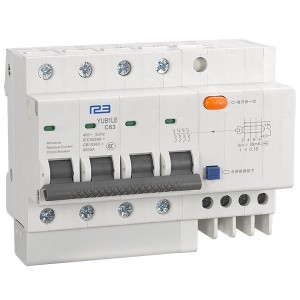

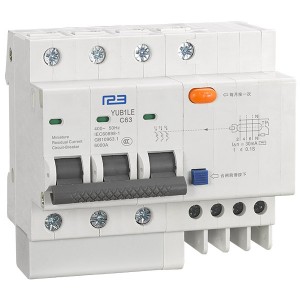

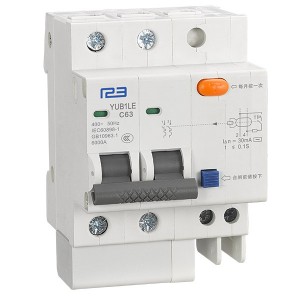

  • Miniature circuit breaker YEB1LE-3~63

    Miniature circuit breaker YEB1LE-3~63

    Miniature Circuit Breaker (MCB) is the core component for Circuit protection and on-off control in low-voltage distribution systems, which is widely used in homes, commercial buildings and small industrial scenarios. Model name: Miniature circuit breaker YEB1LE-3~63 Rated current:3,6,10,16,20,35,32,40,50,63A Rated voltage :230/400V Poles:1P,1P+N,2P,3P,3P+N,4P Rated Breaking capacity:6000A Electrical life: 4000 cycles Mechanical life: 20,000 cycles

    Learn more
  • Miniature circuit breaker YEMA2-6~100

    Miniature circuit breaker YEMA2-6~100

    Rated current :6A-100ARated operating voltage :AC230VNumber of poles :1P、2P、3P、4PRated frequency :AC50HzRated absolute insulation voltage :500VRated short circuit breaking capacity: 6kARated breaking capacity :6kAInstantaneous trip type :C、DTemperature rise of the terminal for connecting external wires: ≤60KMechanical and electrical life: 10,000 timesLevels of protection: IP20Torque of the wiring screw:  ≥3.5Nm

    Learn more

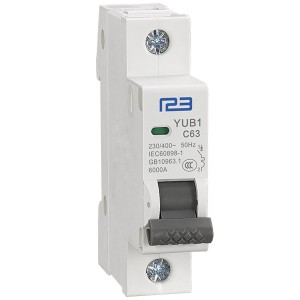

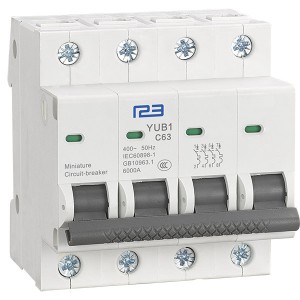

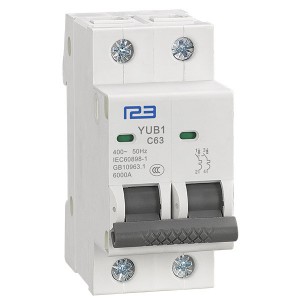

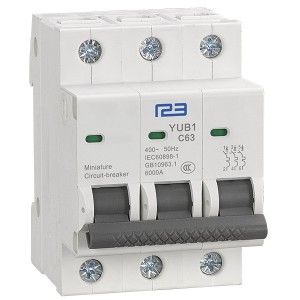

  • Miniature circuit breaker YEB1-3~63

    Miniature circuit breaker YEB1-3~63

    Miniature Circuit Breaker (MCB) is the core component for Circuit protection and on-off control in low-voltage distribution systems, which is widely used in homes, commercial buildings and small industrial scenarios. Model name: Miniature circuit breaker YEB1-3~63 Rated current:1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A Rated voltage :230/415V Poles:1P,2P,3P,4P Rated Breaking capacity:6000A Standard:IEC/EN 60898-1，IEC/EN 60947-2

    Learn more

Miniature Circuit Breaker
