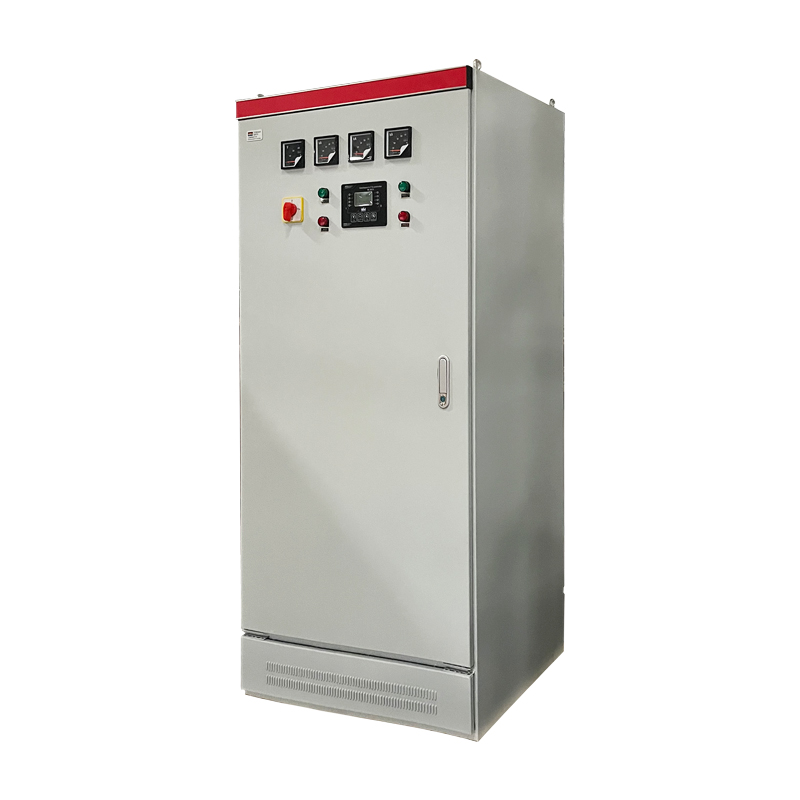

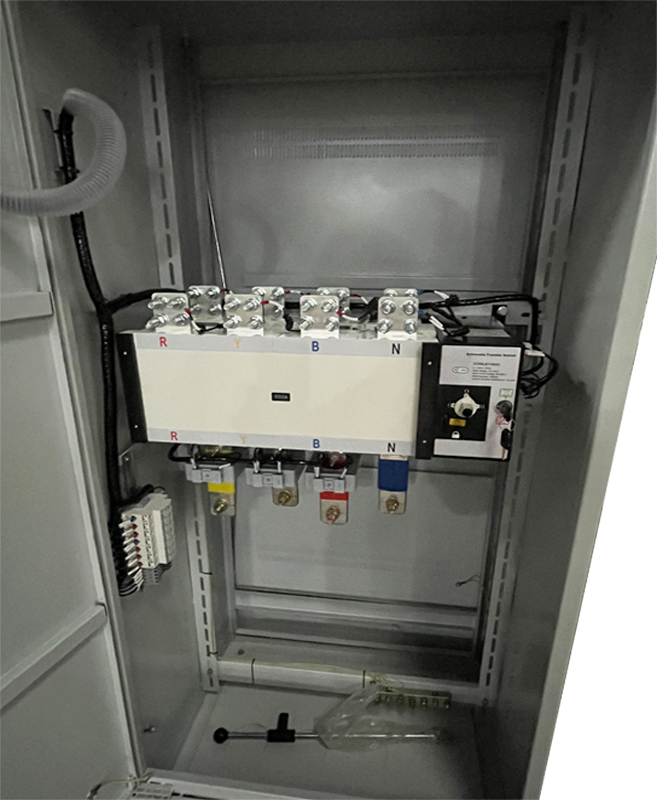

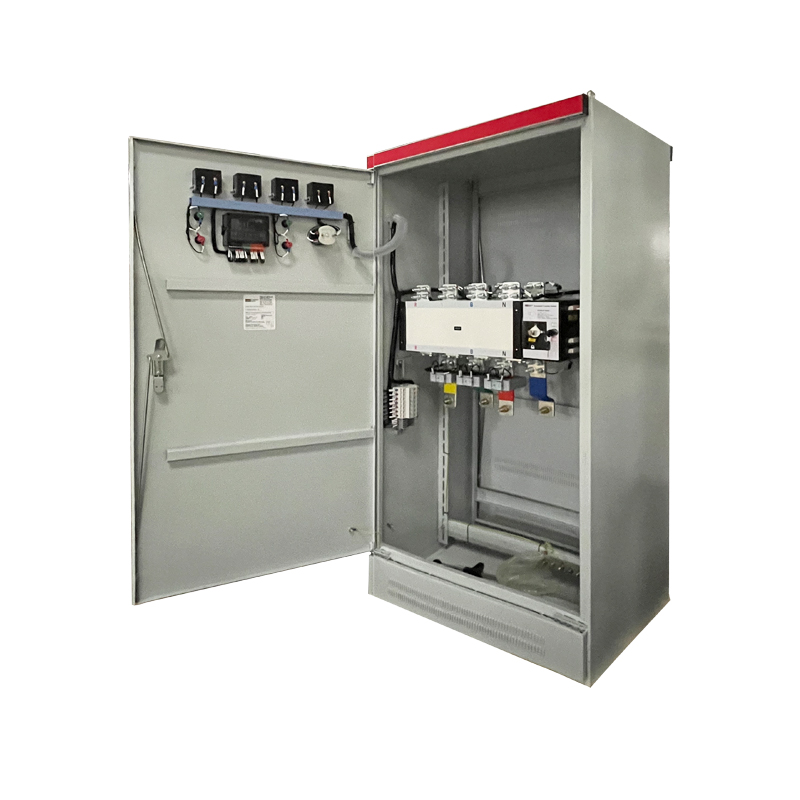

ATS switch cabinet

ATS Cabinet Wall-mounted

Dual circuit power input, automatic detection and switch (support a variety of switching modes);

Wide capacity setting, 63-4000A, flexible configuration according to the back-end load capacity;

High reliability, adopt well-known brands switch devices, equipped with lightning protection device, electrical performance factory inspection;

Intelligent monitoring, equipped with a 4.3-inch touch screen/smart meter, it could detect the current, power and power consumption.etc.

Convenience maintenance , support front and back side maintenance;

Complete quality certification

  • Description
  • Tags
  • Item Parameter value
    Input capacity 63A-4000A ATS, optional
    Cabinet size

    600/800/1000/1300*600*2000 (WxDxH),

    according to the size of the ATS.

    Types of communication RS485
    Lightning protection level Class B, 60kA (8/20 mu s)
    Maintenance mode front and back sides maintenance
    Protection grade IP54.Can be customized on request
    Input/output line mode in and out from upside/in and out from downside
    Installation mode fixing on the floor
    Cooling way Natural cooling
    Certification 3C certification
    Output Bus/plastic shell
    Monitoring parameters Monitor input voltage, current, power, power factor, frequency and quantity of electric charge
    Working temperature Temperature 5 ℃ ~ + 40 ℃
    Working humidity 5%RH~95%RH
    The power supply system 380/400/415V 50/60Hz
    Altitude 0 ~ 2000m, limited using above 2000m.
