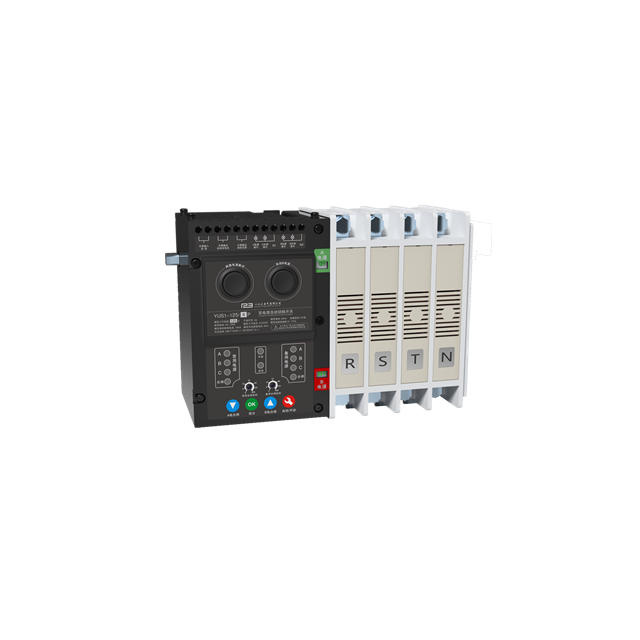

PC Automatic transfer switch YES1-125-SA

Short Description:

  1. The largest manufacturer of ATS in China
  2. High quality standard enterprise supplier,Nader,GE, Siemens supplier
  3. Quickly lead times:Both of us ”Time is gold” ,7*20 hours online service
  4. Professional team,Research and development, design, production
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Customization:
              Customized logo(Min. Order: 100 Pieces)
              Customized packaging(Min. Order: 100 Pieces)
              Graphic customization(Min. Order: 100 Pieces)




  • Rated current: 16A-630A
  • Pole: 2P,3P,4P
  • Product Detail

    Product Tags

    Product detail

    Model

    YES1-SA,YES1-S,YES1-L

    Insulation voltage

    AC690V

    Rated voltage

    AC400V

    Rated  current

    20A-125A

    160A-250A

    315A-630A

    The rated impulse withstand voltage(kV)

    8

    Using classes

    AC-33iB

    Vote number

    Double vote

    Writing manner

    Before the board

    Pole

    2P

    3P

    4P

    2P

    3P

    4P

    2P

    3P

    4P

    Weight

    6

    6.3

    7

    6

    8

    10

    11

    13.6

    16.2

    characteristic

    short time withstand current

    10kA

    12.6kA

    Connect sub-capactiy

    6le

    6le

    Service life

    6000times/20000times

    1000times/4000times

    Operating cycle

    60times/hour

    Auxiliary switch

    A,B side power both with 2 normally open and 2 normally closed;switch capacity

    15A/AC250V

    Weight(kg)

    Manual handle

    Name Content
    Enterprise code Shanghai Yuhuang electric co.,ltd
    Product category PC class Automatic Transfer Switch
    Design code 1
    Current rank NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A
    Product code NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)

    LA:20A~630A(Integral type,Two positions)

    L:20A~630A(Split type,two positions)

    G:GA:16A~3200A(With fire protection function)

    GA1:16A~100A(Without fire protection function)

    Pole 2P(125A and below 125A products),3P,4P
    Rated current 16A~3200A
    Working mode R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator
