Understanding Overload and Short Circuit Protection in Molded Case Circuit Breakers: The Role of Thermal Magnetic and Electronic Tripping Mechanisms

In the field of electrical engineering, the safety and reliability of electrical systems are of paramount importance. One of the key components that ensures this safety is the molded case circuit breaker (MCCB). These devices are designed to protect circuits from overloads and short circuits that can cause catastrophic failures and dangers. This article takes an in-depth look at how molded case circuit breakers achieve overload and short circuit protection through thermal magnetic and electronic tripping mechanisms, with a special focus on the innovations brought by Yuye Electrical Co., Ltd.

The Importance of Circuit Protection

Before exploring the mechanisms of MCCBs, it is important to understand the importance of circuit protection. Overload occurs when the current flowing through a circuit exceeds its rated capacity, resulting in excessive heat generation. On the other hand, short circuits occur when there is an unexpected low-resistance path, causing a sudden surge in current. Both of these situations can result in equipment damage, fire hazards, and even personal injury. Therefore, effective protection mechanisms are essential to safeguard electrical systems.

Molded Case Circuit Breakers: Overview

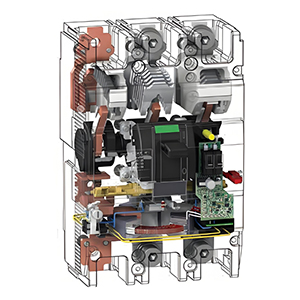

A molded case circuit breaker is an electromechanical device that interrupts the flow of electricity in the event of an overload or short circuit. They are widely used in industrial, commercial, and residential applications due to their reliability and ease of use. Molded case circuit breakers are designed to automatically open the circuit when a fault is detected, thereby preventing damage to the electrical system.

Tripping Mechanism: Thermal Magnetic vs Electronic

There are two main tripping mechanisms used in MCCBs: thermal-magnetic and electronic. Each mechanism has its own unique features and benefits that contribute to the overall efficiency of the circuit breaker.

Thermal Magnetic Trip Mechanism

The thermal-magnetic trip mechanism combines two different functions: thermal protection and magnetic protection.

1. Thermal protection: This feature is based on the principle of heat generated by the flow of current. The MCCB contains a bimetallic strip that bends when current flows through it. When the current exceeds the preset limit for a long time, the bimetallic strip bends enough to trip the circuit breaker, interrupting the current flow. This mechanism is particularly effective in protecting against overload conditions.

2. Magnetic protection: The magnetic component of the thermal magnetic mechanism is designed to deal with short circuits. It uses an electromagnet to generate a magnetic field proportional to the current flowing through the circuit. When a short circuit occurs, the current surges rapidly, causing the magnetic field to increase significantly. When the magnetic force exceeds a certain threshold, it activates the trip mechanism, breaking the circuit and providing immediate protection from the fault.

Thermal-magnetic tripping mechanisms are preferred for their simplicity, reliability and cost-effectiveness. Yuye Electric Co., Ltd. has been at the forefront of developing advanced thermal-magnetic MCCBs that have enhanced performance and durability to ensure electrical systems remain protected under a wide range of conditions.

Electronic Trip Mechanism

Compared to the thermal-magnetic mechanism, the electronic trip mechanism utilizes advanced electronics to monitor the current flowing through the circuit. This mechanism offers several advantages:

1. Precise: The electronic trip mechanism provides more precise and adjustable overload and short-circuit protection settings. Users can customize the trip settings according to the specific requirements of their electrical system.

2. Speed: Electronic tripping mechanisms can detect faults much faster than thermal-magnetic systems. This fast response time is critical to minimizing damage during a short circuit event.

3. Additional Features: Many electronic MCCBs are equipped with features such as communication capabilities, which enable remote monitoring and control. This is particularly useful in industrial applications where real-time data is critical to maintaining system integrity.

Yuye Electrical Co., Ltd. has embraced the development of electronic tripping mechanisms, incorporating state-of-the-art technology into its MCCB designs. Its electronic circuit breakers are designed to provide superior protection and adaptability to meet the diverse needs of modern electrical systems.

Molded case circuit breakers play a vital role in ensuring the safety and reliability of electrical systems by providing effective overload and short circuit protection. The choice between thermal-magnetic and electronic tripping mechanisms depends on the specific requirements of the application. Thermal-magnetic MCCBs offer simplicity and reliability, while electronic MCCBs offer precision and advanced features.

Yuye Electric Co., Ltd. is a leader in the field, constantly innovating and improving its molded case circuit breaker products to meet the changing needs of the industry. By understanding the mechanisms behind molded case circuit breakers, engineers and technicians can make informed decisions that improve the safety and efficiency of electrical systems. As technology continues to advance, the future of circuit protection looks bright, and Yuye Electric Co., Ltd. is at the forefront of this change.
