Understanding the Internal Structure of a Miniature Circuit Breaker: Insights from Yuye Electric Co., Ltd.

In the world of electrical engineering, miniature circuit breakers (MCBs) play a key role in protecting electrical circuits from overloads and short circuits. As a critical component in residential, commercial, and industrial electrical systems, understanding the internals of MCBs is essential for professionals and enthusiasts alike. This article delves into the complex design and functionality of miniature circuit breakers, with insights from Yuye Electrical Co., Ltd., a leading manufacturer in the electrical equipment industry.

Importance of Miniature Circuit Breakers
Miniature circuit breakers are designed to automatically shut down a circuit when they detect an abnormal condition, such as an overload or short circuit. This automatic disconnection prevents potential hazards, including electrical fires and damage to equipment. Miniature circuit breakers are preferred over traditional fuses because they are resettable, allowing for quick restoration of service without the need for replacement.

Internal structure of a miniature circuit breaker

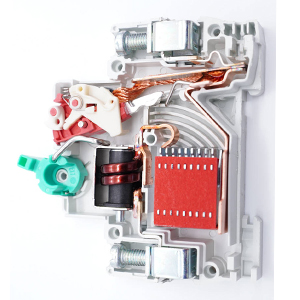

The inner workings of a miniature circuit breaker are an engineering marvel, made up of several key components that work together to ensure reliable operation. The main elements include:

Operating Mechanism: The operating mechanism is the heart of the MCB and is responsible for the tripping action. It usually consists of a spring loaded mechanism which is held in place by a latch. When an overload or short circuit occurs, the mechanism is triggered, releasing the latch and allowing the spring to push the contacts apart, interrupting the circuit.

Contacts: Contacts are key components for establishing and interrupting electrical connections. MCBs typically have two sets of contacts: main contacts and auxiliary contacts. The main contacts handle the load current, while the auxiliary contacts are used for signal transmission and other functions, such as remote operation.

Thermal and Magnetic Trip Devices: To ensure accurate and timely disconnection, MCBs are equipped with thermal and magnetic trip devices. The thermal trip device operates on the heat generated by the current flowing through the circuit. It uses a bimetallic strip that bends when heated, eventually triggering the trip mechanism. The magnetic trip device, on the other hand, reacts to sudden surges in current, such as those caused by a short circuit. It uses an electromagnet that activates the trip mechanism almost instantly.

Enclosure: The enclosure of an MCB is designed to protect the internal components from environmental factors such as dust, moisture, and mechanical damage. It is usually made of durable insulating materials that can withstand high temperatures and electrical stress.

Terminal Connections: Terminal connections are where the MCB interfaces with the circuit. These connections must be strong and reliable to ensure a secure electrical connection. Yuye Electrical Co., Ltd. emphasizes the importance of high quality terminal connections in its MCB designs to ensure minimal resistance and optimal performance.

Role of Yuye Electric Co., Ltd.
Yuye Electrical Co., Ltd. is a leader in the production of miniature circuit breakers with a focus on innovation and quality. The company uses advanced manufacturing techniques and rigorous testing protocols to ensure that its miniature circuit breakers meet international safety standards. Their commitment to excellence is reflected in the design of their products, which incorporate the latest advances in electrical engineering.

Yuye Electric Co., Ltd. recognizes that the internal structure of an MCB is not only about functionality, but also about reliability and safety. Their MCBs are designed to withstand extreme conditions, ensuring they operate effectively in a variety of applications. The company’s engineers continuously research and develop new technologies to improve the performance of their circuit breakers, making them the first choice of electrical professionals around the world.

Understanding the internals of a miniature circuit breaker is essential for anyone involved with electrical systems. Complex designs, including operating mechanisms, contacts, tripping devices, enclosures, and terminal connections all help miniature circuit breakers protect circuits from potential hazards. Yuye Electrical Co., Ltd. stands out in the industry for its commitment to quality and innovation, providing reliable miniature circuit breaker solutions that meet the demands of modern electrical applications.

As the electrical world continues to evolve, the importance of miniature circuit breakers will only grow. With companies like Yuye Electrical leading the way, we can expect MCB technology to continue to advance, ensuring electrical systems are safer and more efficient for everyone. Whether you’re an electrical engineer, contractor, or homeowner, understanding the internals of an MCB can help you make informed decisions about electrical safety and reliability.
