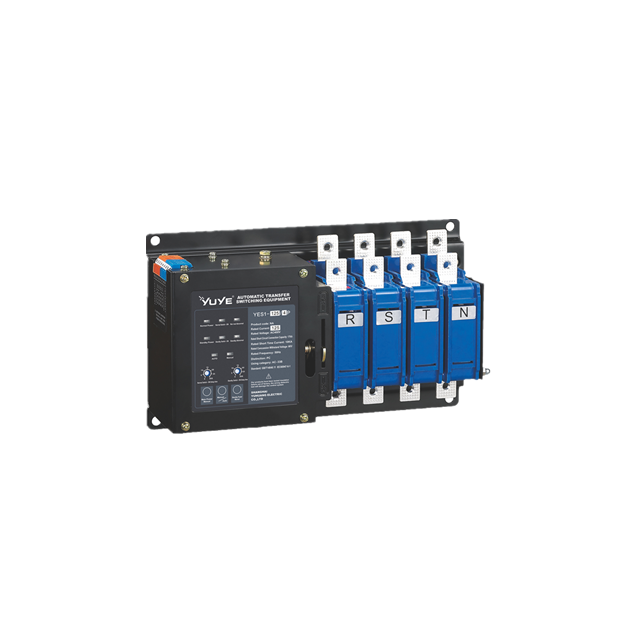

Solenoid-type ATS YES1-32~125NA

 Model Name:Solenoid-type  YES1-32~125NA

Rated Voltage: AC230V，AC400V

Rated Current: 16A~125A

Pole: 3P，4P

Product Category: PC Class

Rank Current:16A,20A,25A,32A,40A,50A,63A,180A,100A,125A

Features: 3 Position,Built-in Ats Controller

Drive Mode: Excitation type

Mechanical life：20000

Electrical life：6000

Certification: CE,CB,CCC

Standard: IEC 60947-6-1

Get A Free Quote
PDF Download
  • Description
  • Tags

  • 1.Description

    This series of dual power automatic switch is a high-tech product developed by our company using the latest technology.It complies with the GB14048.1 and GB/T14048.11 standards,and also meets the "High-rise civil building fire code",“Code for Fire Protection of Building Design”, “Guide to Design of Emergency Lighting”,“Electrical Design of Civil Buildings Specification”etc. The components of the product undergo strict aging screening, and the finished product is powered on for 72hours. After passing the inspection,
    It can be packaged.There by ensuring there liability and safety of the product.This product is mainly used for the primary and secondary loads specified by the state, and is widely used in an important place to supply power continuously.Such as fire protection, post and telecommunications,Communication, hospitals, hotels, urban rail transit, high-rise buildings,industrial assembly lines, television stations, etc. The main and back up power sources can be the power grid,the self- starting generator set, the battery group and so on.

    2.Working conditions
    2.1 Ambient air temperature:ambient air temperature-5°C to+40 °C, and the 24-hour average temperature value does not exceed+35 °C. with ambient air temperatures above +40°C or below-5°C , Users should consult with the manufacturer.
    2.2 Air humidity: when the maximum temperature is +40 degrees, the relative humidity is not more than 50%.Monthly maximum relative humidity 90%.It can tolerate the influence of humid air at sea and allow at lower temperatures.With higher relative humidity, special measures should be taken for the occasional condensation produced by temperature changes.
    2.3 Installation height: the installation site is not more than 2000 meters above sealevel.For higher height,considering the decrease in dielectric strength and cooling effect of air at higher altitudes.Users should consult with the manufacturer.
    2.4 Pollution level: the environmental pollution level of the installation site is level 3.
    2.5 Installation Category: Installation Category is IV.
    2.6 Mounting inclination: The product is fixedly installed in the cabinet with a maximum inclination of ±22.5°.
    2.7 Arcing distance: The arcing distance is 80mm when AC is 400V. The arcing distance can be ignored when using below 125Ampere.
    2.8 Use category:AC-33B

    3.Product structure
    The product consists of two parts: switch body and intelligent ATS controller. The switch body with an electrical and mechanical interlock. The closing indication is used as an indicator of the isolation function. The product used solenoid actuate,double wire loop DC pulse operation, The operation power of the conversion controller adopts the line voltage 220V of main power and standby power supply.No need to additional control power.



    4.Product detail

    Model

    YES1-32NA

    YES1-63NA

    YES1-125NA

    Rated current(A)

    16,20,25,32

    40,50,63

    80,100,125

    Rated control current(A)

    5

    Rated short time current(kA)

    10

    The rated impulse withstand voltage(kV)

    8

    Service

    Mechanical

    20000

    Electric

    6000

    Pole

    2P

    3P

    4P

    2P

    3P

    4P

    Weight(kg)

    4.2

    4.7

    5.2

    5

    5.5

    6.5

    Operating cycle(s/time)

    10
