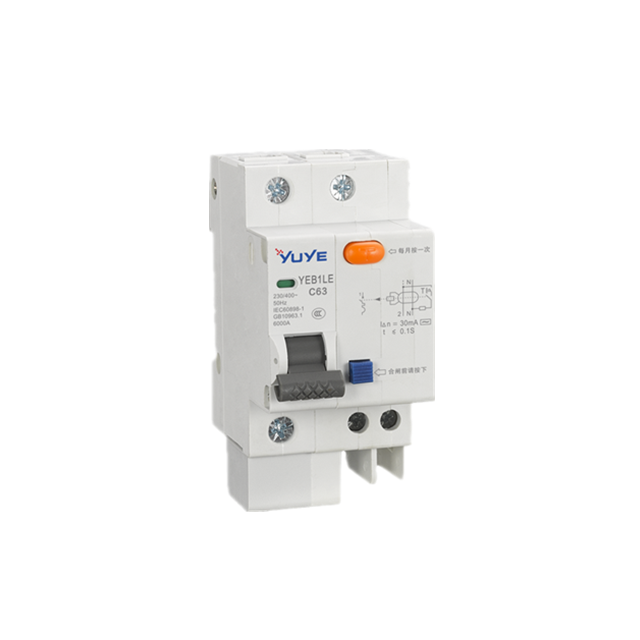

Miniature circuit breaker YEB1LE-63/1P

Earth Leakage Circuit Breaker

Lead Time:

Quantity(Pieces)	1 - 100	101 - 500	501 - 1000	>1000
Est. Time(days)	5	7	10	To be negotiated

Customization:: Customized packaging(Min. Order: 5000 Pieces)

Customized logo(Min. Order: 100 Pieces)

Get A Free Quote

PDF Download

Share To

Description
Tags

ATS (PC CB)

Name	Content
Enterprise code	Shanghai Yuhuang electric co.,ltd
Product category	Miniature circuit breaker
Design code	1
Current rank	NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630A G:100A,250A,630A,1600A,3200A M:1600A A Q:3200A
Product code	NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions) C:16A~630A(Split type,two positions) M:630A~1600A(Split type,two positions) Q:630A~3200A(Split type,two positions) SA:20A~630A(Integral type,Three positions) S:20A~630A( Split type,Three positions) LA:20A~630A(Integral type,Two positions) L:20A~630A(Split type,two positions) G:GA:16A~3200A(With fire protection function) GA1:16A~100A(Without fire protection function)
Pole	1P,1P+N,2P,3P,3P+N,4P
Rated current	3A~63A
Working mode	R=Self-input and self-recoverS=Self-input without self-recover F=Utility-Generator

YES1 series ATSE consists of switch body and transfer control these two parts. Switch is driven by electromagnetic coil,so the transfer speed is very fast. The power source of controller takes main power or emergency power AC220V as working voltage.

NA,SA,LA type ATSE is integral type. The controller is installed inside of switch body. User only need to connect the main circuit then ATSE could work. It’s convenience for user connect writing. Meanwhile,SA type ATSE with generator start signal,passive fire input,passive fire feedback,main power and emergency power closing indicator.

N,C,M,Q,S,L is split type. The controller is separated with switch body. User should connect controller with switch body by wires.
Integral and split type ATSE both with over voltage,under voltage,default phase etc fault detection function and also with generator start and scenter signal output function(When main power fault,the signal will be sent out after 3s time delay. When main power recover,the signal will be scenterped after 3s time delay).
