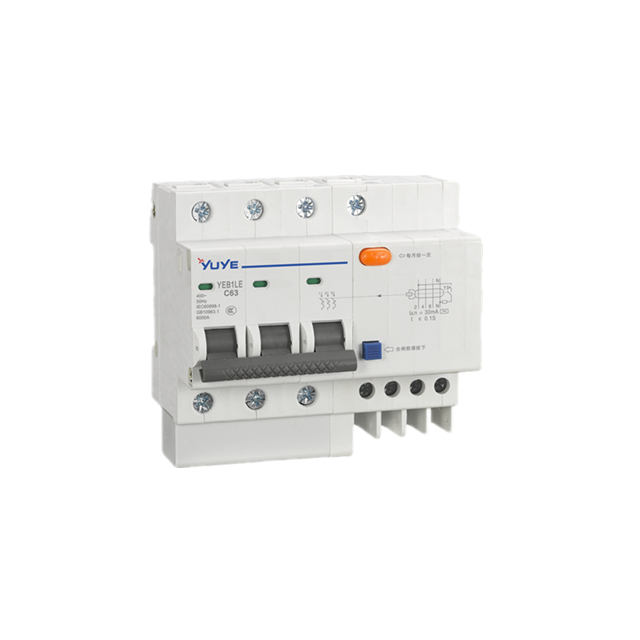

Miniature circuit breaker YUB1LE-63/3P

Precision manufacturing process, rigorous testing system, material management control is our guarantee of high quality.
  • Miniature circuit breaker YUB1LE-63/3P
  • Miniature circuit breaker YUB1LE-63/3P
  • Miniature circuit breaker YUB1LE-63/3P
  • Miniature circuit breaker YUB1LE-63/3P
Miniature circuit breaker YUB1LE-63/3P
Earth Leakage Circuit Breaker
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 5 7 10 To be negotiated
Customization:
Customized packaging(Min. Order: 5000 Pieces)
Customized logo(Min. Order: 100 Pieces)
  • Description
  • Tags
  • Product details

    Name Details
    Enterprise code Shanghai Yuhuang Electric Co.,ltd
    Product category Miniature Circuit Breaker
    Design code 1
    Function code Electronic type residual current protection function
    Current rank 63A
    Pole 1P,1p+N,2P,3P,3P+N,4P
    Neutral pole +N
    Using code C=Light distribution,D=Motor protection
    Rated current 3A~63A
    Residual initiating current 30,50,100,300

    Technical parameter

    Rated voltage(V)

    Rated frame graded current Inm (A)

    Pole

    Neutral

    Rated current(A)

    Rated leakage operate current I△n(mA)

    Rated no leakage operate current I△no(mA)

    Rated leakage operate time(s)

    230

    63

    1

    +N

    3,6,10,16,20

    32,35,40,50,

    63

    30,(50),

    (100),

    (300)

    15,(25),(50),

    (150)

    ≤0.1

    230/400

    2

    230/400

    3

    +N

    230/400

    3

    230/400

    4

    Remark:

    1. Wiring with clamp terminal,hardwire can be connect to 25 mm2 and below.
    2. Notice:Rated residual current of 30mA or less indirect protection or personal saretyfeatures,but not simultaneously contact the two wires leakage protection at the same time.
