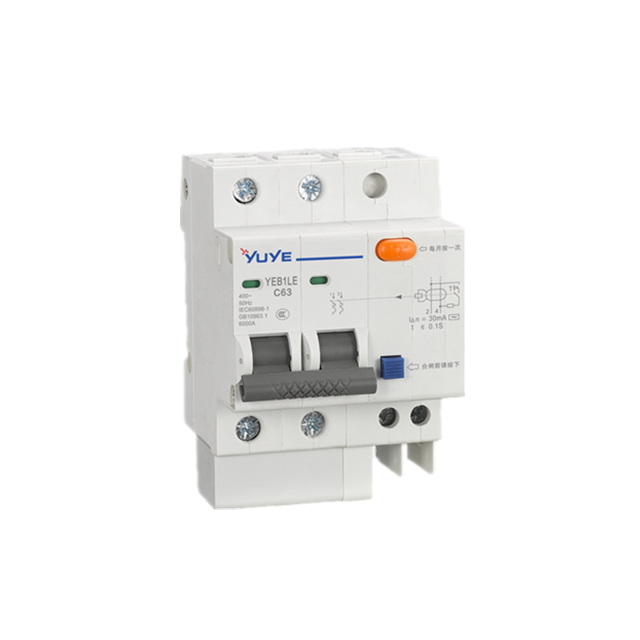

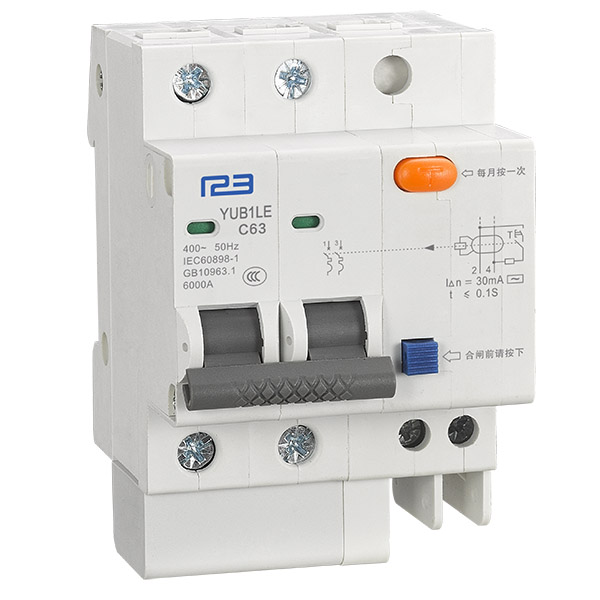

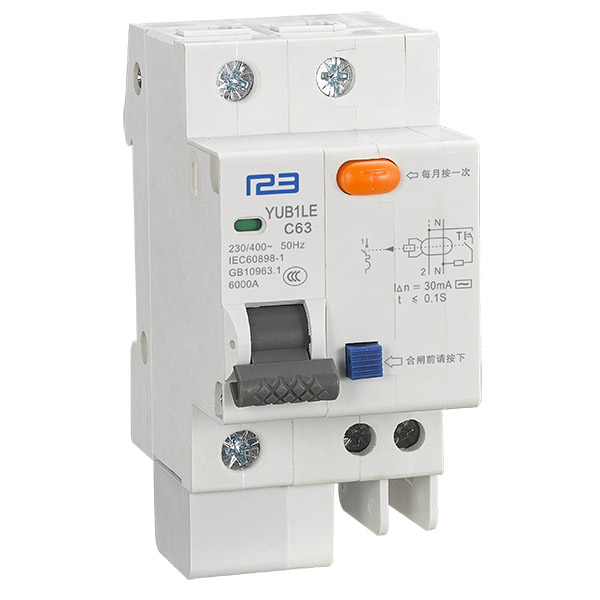

Miniature circuit breaker YEB1LE-3~63

Miniature Circuit Breaker (MCB) is the core component for Circuit protection and on-off control in low-voltage distribution systems, which is widely used in homes, commercial buildings and small industrial scenarios.

  • Model name: Miniature circuit breaker YEB1LE-3~63
  • Rated current:3,6,10,16,20,35,32,40,50,63A
  • Rated voltage :230/400V
  • Poles:1P,1P+N,2P,3P,3P+N,4P
  • Rated Breaking capacity:6000A
  • Electrical life: 4000 cycles
  • Mechanical life: 20,000 cycles
Get A Free Quote
PDF Download
  • Description
  • Tags

  • Technical parameter

    Name Content
    Enterprise code Shanghai Yuhuang electric co.,ltd
    Product category

    Miniature circuit breaker
    Design code 1
    Current rank NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630A
    G:100A,250A,630A,1600A,3200A
    M:1600A A
    Q:3200A
    Product code NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)
    C:16A~630A(Split type,two positions)
    M:630A~1600A(Split type,two positions)
    Q:630A~3200A(Split type,two positions)
    SA:20A~630A(Integral type,Three positions)
    S:20A~630A( Split type,Three positions)
    LA:20A~630A(Integral type,Two positions)
    L:20A~630A(Split type,two positions)
    G:GA:16A~3200A(With fire protection function)
    GA1:16A~100A(Without fire protection function)
    Pole

    1P,1P+N,2P,3P,3P+N,4P
    Rated current

    3A~63A
    Working mode R=Self-input and self-recoverS=Self-input without self-recover
    F=Utility-Generator



    Technical parameter
    Rated
    voltage(V)    		 Rated frame graded
    Current Inm(A)    		 Pole Neutral      Rated
      current(A)    		 Rated leakage operate
    current I△no(mA)    		 Rated leakage no
    operate currentI△no(mA)    		 Rated leakage
    operatetime(s)
    230  63  1  +N   3,6,10,16,

       20,35,32,
        40,50,63

    		 30,(50),

    (100),(300)

    		 15,(25),(50),

    (150)

    		 <0.1
    230/400 63  2    <0.1
    230/400 63  3  +N <0.1
    230/400 63  3    <0.1
    230/400 63  4    <0.1
