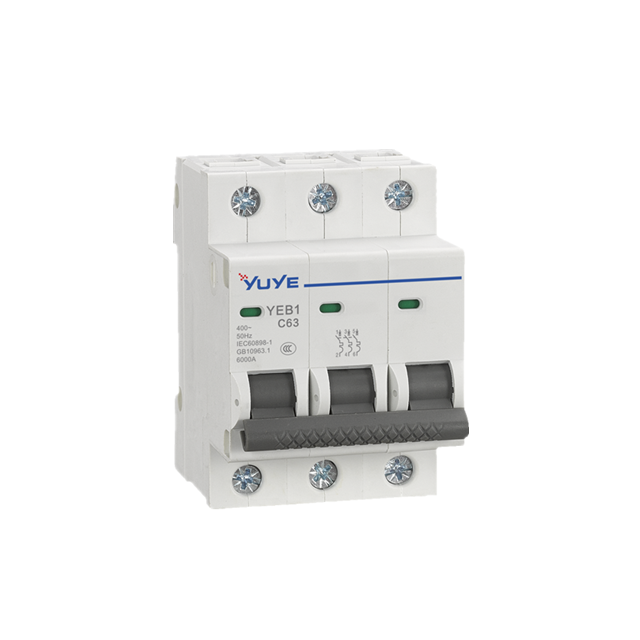

Miniature circuit breaker YUB1-63/3P

Precision manufacturing process, rigorous testing system, material management control is our guarantee of high quality.
  • Miniature circuit breaker YUB1-63/3P
  • Miniature circuit breaker YUB1-63/3P
  • Miniature circuit breaker YUB1-63/3P
  • Miniature circuit breaker YUB1-63/3P
Miniature circuit breaker YUB1-63/3P
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 5 7 10 To be negotiated
Customization:
Customized packaging(Min. Order: 5000 Pieces)
Customized logo(Min. Order: 100 Pieces)
  • Description
  • Tags
  • Product details

    Name Details
    Enterprise code Shanghai Yuhuang Electric Co.,ltd
    Product category Miniature Circuit Breaker
    Current rank 63A
    Pole 1P
    Using code C=Light distribution,D=Motor protection
    Rated current 3~63A

    Technical parameter

    Rated current(A)

    Pole

    Rated voltage(V)

    Rated short circuit breaking capacity (A)

    Power factor

    Mechanical life(times)

    3,6,10,16,20,25,32,40,50,63

    1P+N

    230/400

    6000

    0.65~0.70

    20000

    Remark:

    1. Electrical life:4000 cycles.
    2. Antihumid head type:II(The temperature is 55 degrees,the ralative humidity is 95%).

    3.Wiring with clamp terminal.cross-section of cable can be up to 25 mm2.
