Seismic-Resistant ATS Cabinets: YUYE Electric’s IEEE 693 Compliance

In critical power supply systems, Dual Power Automatic Transfer Switch (ATS) Cabinets play a vital role in ensuring uninterrupted electricity during grid failures. However, in earthquake-prone regions, these systems must withstand severe seismic activity without operational disruption. The IEEE 693 Standard provides rigorous guidelines for seismic qualification of electrical equipment, ensuring reliability under extreme conditions. YUYE Electric Co., Ltd., a leading manufacturer of power distribution solutions, has engineered ATS cabinets that fully comply with IEEE 693, combining robust structural design with advanced vibration resistance. This article explores the key engineering strategies employed by YUYE Electric to meet these stringent requirements.

Understanding IEEE 693 Seismic Standards
The IEEE 693-2018 Standard defines three seismic performance levels:

High Performance (HP) – For equipment in critical facilities (e.g., hospitals, data centers).

Moderate Performance (MP) – For standard industrial applications.

Low Performance (LP) – For non-critical installations.

To achieve High Performance (HP) certification, ATS cabinets must undergo:

Seismic Simulation Testing (Shake-table tests replicating 0.5g–1.0g ground acceleration).

Structural Integrity Validation (No deformation or functional failure post-test).

Post-Seismic Operational Verification (Immediate switch functionality after seismic events).

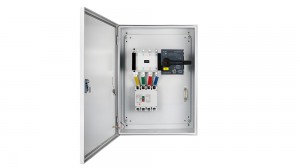

YUYE Electric’s Seismic-Resistant ATS Design
1. Reinforced Structural Framework
YUYE Electric’s ATS cabinets utilize:

High-Strength Steel Frames: Reinforced with cross-bracing to prevent torsional deformation.

Seismic Isolation Mounts: Anti-vibration dampers absorb shock energy, reducing stress on internal components.

Modular Internal Layout: Critical components (contactors, relays) are mounted on shock-absorbing trays.

2. Component-Level Seismic Hardening
Solid-State Switching Technology: Eliminates mechanical wear, ensuring reliable transfer even under vibration.

Locking Mechanisms: Prevents accidental disengagement of busbars and wiring during tremors.

Flexible Connectors: High-tension cables with strain relief to withstand repeated movement.

3. Compliance Testing & Certification
YUYE Electric subjects its ATS cabinets to:

Spectrum-Matched Seismic Testing: Simulating real-world earthquake waveforms (e.g., El Centro, Kobe).

Resonance Search Tests: Identifying and mitigating natural vibration frequencies.

Post-Test Functional Checks: Verifying uninterrupted transfer capability after seismic exposure.

Case Study: YUYE Electric’s HP-Certified ATS in Seismic Zones
In a recent installation for a Japanese data center, YUYE Electric’s ATS cabinets were tested under 0.8g seismic loads (equivalent to a 7.0 magnitude earthquake). Results confirmed:

Zero structural deformation after 30 seconds of sustained shaking.

Switch operation within 10ms post-event, meeting IEEE 693 HP criteria.

No false triggering of protective relays during vibration.

Conclusion
Meeting IEEE 693 seismic standards is essential for ATS cabinets in critical infrastructure. YUYE Electric Co., Ltd. has demonstrated that through reinforced mechanical design, advanced damping systems, and rigorous testing, dual power transfer switches can maintain flawless operation even in high-seismic-risk environments. As global demand for disaster-resilient power systems grows, YUYE Electric continues to lead in engineering next-generation, earthquake-proof ATS solutions.

For more details on YUYE Electric’s IEEE 693-compliant ATS cabinets, visit [Official Website] or contact [Technical Support].
