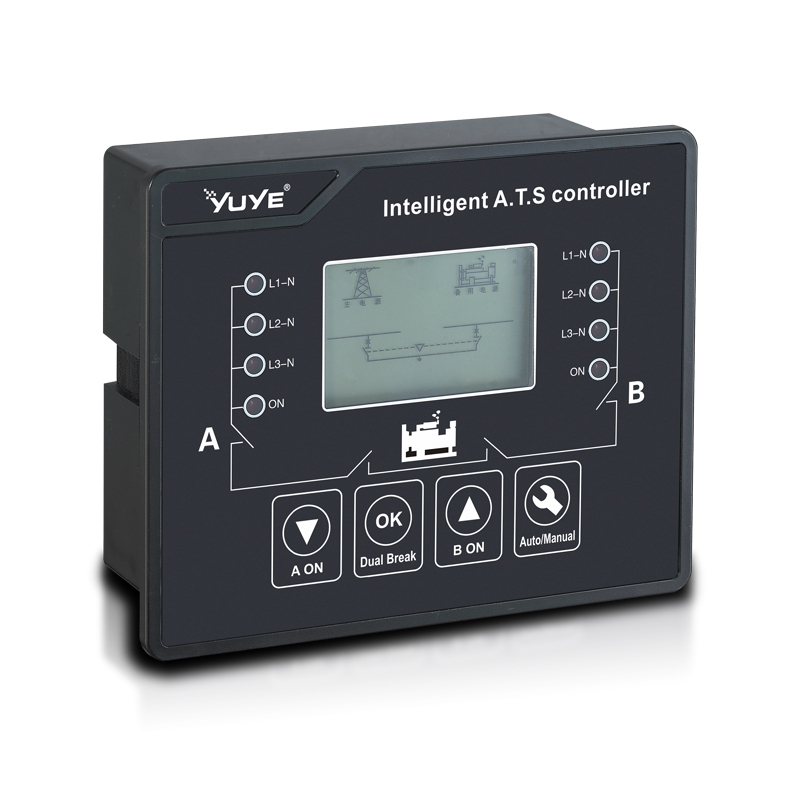

ATS Controller Y-701/702

Rated operating voltage: AC 220V, 380V (other voltage levels can be customized)

Operating Frequency: 50Hz/60Hz

Voltage measurement accuracy: ± 1%

Frequency measurement accuracy: ± 0.05 Hz

Switching time: 0.05-5 seconds (adjustable)

Communication Interface: RS485, Ethernet (optional)

Communication Protocol: Modbus RTU, TCP/IP (optional)

Working Temperature: -20 °C-+ 60 °C

Working environment humidity: ≤90% Rh (no condensation)

Certification: CE,CB,CCC

Standard: IEC 60947-6-1

Get A Free Quote
PDF Download
  • Description
  • Tags

  • 1.Overview

    Y-701/Y-702 series Dual-Automatic Transfer Switch Controller is an ideal ATS controller which equipped with Microprocessor Measuring unit, Programmable Output unit, Communication unit(only 702),Indicator Display(701 NORMAL,702 LED) function, adjustable Conversion Delay function, adjustable working models and Intelligent Power Module to reduce the risk of man-made operation.
    Due to the core is made up of microprocessor, Y-701/Y-702 series controller can detects any tiny changes(over-voltage,under-voltage and lacking phase) of the circuit and output the passive switch quantity signal.



    2.Features
    2.1 Microcontroller-based measurement and control system with true RMS calculation for thebasic parameters of the power grid;
    2.2 Adjustable transfer delay and operation modes for various applications;
    2.3 LEDs indicate the operational status;
    2.4Equipped with programmable input and output interfaces;
    2.5 Passive fire signal;
    2.6 RS-485 communication interface;
    2.7 Protection level:IP50.



    3.Operating Environment
    3.1 Installation site:The altitude should match the TSE-specified usage altitude.
    3.2 Pollution level:Level 3.With no explosive hazards,corrosive gases,liquids,or conductivedust that may damage metal components or insulation in the surrounding air.
    3.3 Ambient air temperature:-5°C~+40℃,with an average temperature within 24 hours notexceeding+35℃.
    3.4 Humidity:When the maximum temperature is +40°℃,the relative humidity should notexceed 50%.Higher humidity is permissible at lower temperatures(e.g.,up to 90%at+20℃).Special measures should be taken for occasional condensation due totemperature changes.
    3.5 If these conditions above are not met,please consult our company for further solutions.



    4.Controller Function Introduction



    5.Different between Y-701 and Y-702
    Products model Y-701 Y-702
    Installation method Fission type
    Display mode ndicator light LED
    Rated duty Uninterrupted duty
    Self-input and self restore ■ ■
    Normal port and standby port share to each other ■ ■
    Generator auto-start function ■ ■
    Normal power detect ■ ■
    Standby power detect four-phase lacking phase detection,three-phase over-voltage/under-voltage detection.
    Passive fire protection input four-phase lacking phasedetection,three-phase over-voltage/under-voltage detection.
    (dc9-36v)active fire protection input ■ ■
    Active fire control input ■ ■
    Voltage real-time display ■ ■
    Normal power and standby power indication □ ■
    Normal power and standby power ■ ■
    Over-voltage/under-voltage adjustable ■ ■
    Generator rev.Stop time adjustable ■ ■(F/ F1)
    Programmable output □ ■
    Rs485 communicating function □ ■


    6.Y-701/702 Installation and instruction Manual



    7. Lead lime and Customization

    Delivery Time: 1 unit ships the same day, 100 units within 1 week. Contact us for lead times on larger orders.



    8. Frequently Asked Questions

    Q1: What is the difference between Y-701 and Y-702?

    A: Y-701 has normal indicator display; Y-702 adopts LED display and adds RS-485 communication function.

    Q2: What power faults can this controller detect?

    A: It monitors overvoltage, undervoltage and phase loss, and outputs passive switch signals once abnormalities are detected.

    Q3: Does the Y-701/Y-702 support adjustable transfer delay and multiple working modes?

    A: Yes. It supports adjustable conversion delay and selectable working modes for different site requirements.

    Q4: Does it have fire signal input function?

    A: Yes, it is equipped with passive fire signal interface.

    Q5: What is its protection grade and working temperature range?

    A: Protection class IP50; operating temperature: -5℃ ~ +40℃.

    Q6: What are the requirements for the installation environment?

    A: Pollution level 3. No explosive, corrosive gas or conductive dust. Avoid condensation.
