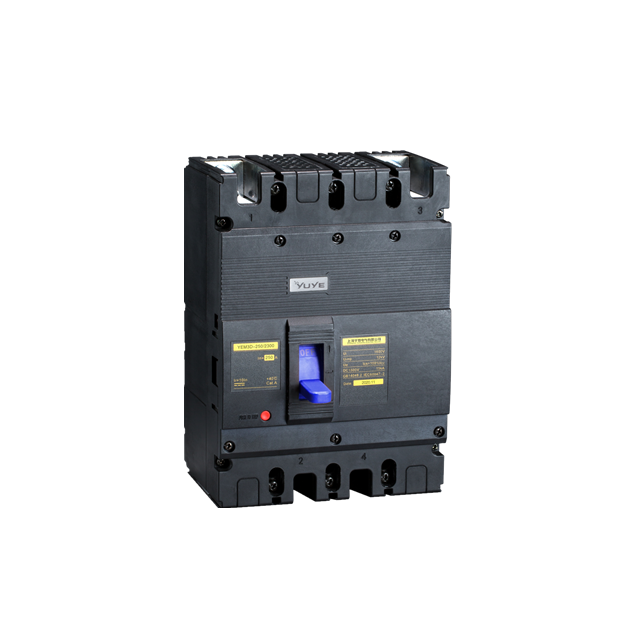

DC Plastic shell type circuit breaker YEM3D

Short Description:

YEM3D-250 DC Plastic Shell Type Circuit Breaker are mainly used in DC systems

Rated Current:   250A
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
Customized logo(Min. Order: 1000 Pieces)
Customized packaging(Min. Order: 1000 Pieces)
Graphic customization(Min. Order: 1000 Pieces)


  • rated insulation voltage : DC 1600V
  • rated working voltage : DC 1500V
  • Product Detail

    Product Tags

    Product details

    Name Details
    Enterprise code Shanghai Yuhuang Electric Co.,ltd
    Product category Moulded case circuit breaker
    Design code 1
    Product’s code DC=Plastic Shell Type Circuit Breaker
    Breaking capacity 250
    pole 2P
    Release and part’s code 300 no part(Please see the release part NO.table)(P45)
    Rated current 100A~250A
    Operation type None=Manual direct operation P=Electric operation Z=Manual manipulation
    Use NO. None=Power distribution type breaker 2=Protect motor

    Product Overview

    YEM3D-250 DC circuit breakers are mainly used in DC systems with rated insulation voltage of 1600V,rated working voltage of DC 1500V and below,over load and short circuit protection foe power distribution and protection lines and power supply equipment in DC systems with rated current 250A and below.

    Operating conditions

    1. Ambient temperature -5℃~+40℃。
    2. Installation site of the elevation of not more than 2000m.
    3. The relative humidity of the air at the installation site does not exceed 50%at a maximum temperature of +40℃and higher relative humidity at a lower temperature,for example 90% at 20℃.Special measures should be taken for condensation occasionally due to temperature changes.
    4. Pollution level is 3.
    5. Circuit breaker main circuit installation category Ⅲ,the remaining auxiliary circuits,cintril circuit installation category Ⅱ.
    6. Circuit breakers foe electromagnetic environment A.
    7. Circuit breakers should be installed in the absence of explosive and non-conductive dust,enough to corrode the metal and damage the insulation.
    8. Circuit breakers should be installed in the absence of rain and snow invasion.
    9. Storage conditions:ambient air temperature is -40℃~+70℃.
